Modular seating gives a patio flexibility, but that flexibility depends on hardware most shoppers never see. Outdoor sectional connector clips are the small mechanical links that hold two upholstered pieces together so the arrangement reads as a single sofa rather than a row of drifting chairs. When those clips work well, cushions align, seams stay tight, and no one falls into the gap between a corner unit and an armless middle. When they fail, the pieces can shift apart during use.
Modular collections can use different connector styles, so compare the hardware on the specific pieces you are considering. Understanding how these clips work, how to inspect them, and what to check at delivery will help any patio arrangement stay square through cookouts, family movie nights, and the occasional grandchild bouncing across the seats.
What Outdoor Sectional Connector Clips Actually Do
A modular sectional is built from independent frames: corner pieces, armless middles, ottomans, and sometimes chaise ends. Each frame sits on its own feet. Without a connector, adjacent frames can slide apart whenever someone shifts weight, sweeps under the furniture, or bumps a coffee table. The connector’s job is to lock two frames together at the point where they meet so the load transfers across the seam instead of separating it.
Different manufacturers approach this in different ways. Some use a metal bracket on one frame that hooks over a matching pin on the neighboring frame. Others use a spring-loaded latch operated by a lever underneath the seat. A few use a simple gravity hook where you lift one frame slightly, drop it onto a tab on the adjacent piece, and let the weight of the frame hold everything in place. None of these approaches is universally better; the right style depends on the collection’s frame material, weight, and cushion depth.
Common Connector Styles You’ll See on a Showroom Floor
Walking through a modular display, the most common styles fall into a few categories:

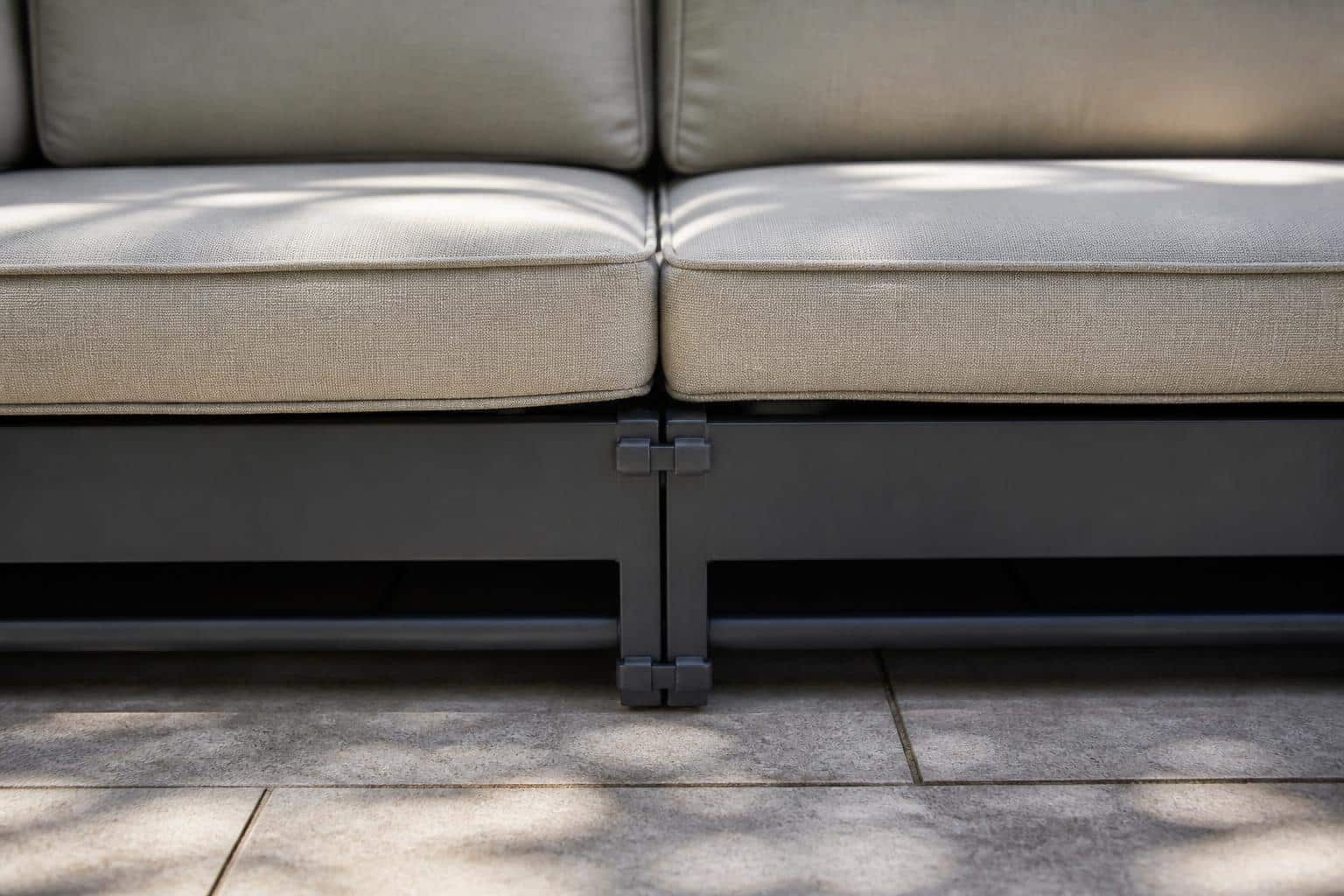

- Hook-and-eye brackets: A flat metal hook mounted to one frame slots into a loop or eye on the other. Fast to attach, easy to separate for cleaning under the sofa.
- Cam-lock connectors: A cam mechanism draws two frames tightly together when a lever is turned. These tend to feel the most rigid but require access underneath.
- Bolt-through plates: Two flat plates align across the seam and are joined with a bolt or thumbscrew. Rock solid, though slower to assemble.
- Gravity or drop-in tabs: A tab on one frame drops into a slot on the next. Simple, silent, and dependent on frame weight to stay engaged.
Aluminum-framed sets often favor cam or bracket systems because the frames themselves are light and would otherwise slide too easily. Heavier teak or all-weather wicker sets sometimes rely on gravity tabs alone because the frame weight does most of the work.
How to Inspect Connectors Before You Commit
When evaluating a modular set in person, sit down at the seam between two pieces. Shift your weight side to side. A well-connected sectional should feel like one continuous bench. If you can feel the pieces flex independently, or if the cushion seam opens as you move, the connector is either misadjusted or undersized for the frame.
Next, look underneath. Ask what material and finish protect the connector from outdoor exposure, and inspect it for bare or damaged areas where corrosion could begin. Ask the salesperson to demonstrate how the connector releases; if the mechanism is buried or requires tools the homeowner won’t have, cleaning underneath the sectional becomes a chore.
Finally, check whether every possible seam has hardware. Some collections only ship connectors for the two or three most common configurations. If you plan to rearrange the set seasonally, confirm that additional connectors are available for the layouts you have in mind. Use the outdoor furniture collections as a starting point, then confirm the connector type for the exact modular set you inspect.
Frame Alignment and Floor Level
Connectors can only do so much when the patio surface itself is uneven. A flagstone patio with a quarter-inch rise between two stones will twist a modular frame just enough to prevent the connector from engaging cleanly. Before assembling the sectional, walk the layout with a level or a straight board. Small shims, hidden under the feet of the outer pieces, can bring everything back into plane.
Cushion seams are the visible tell. If two adjacent seat cushions form a clean line across the top but pull apart at the front edge, one frame is tilted forward relative to the other. That’s a floor issue, not a connector issue. Fix the floor first, then reconnect.
Seating comfort itself depends on more than hardware. The Cornell University Ergonomics Web publishes general seating and posture background, not a sectional-connector standard, but the material is useful reading for anyone curious about why seat depth, cushion firmness, and back angle influence how long a sofa stays comfortable during an evening outdoors.
Cushion Seams and the Visual Test

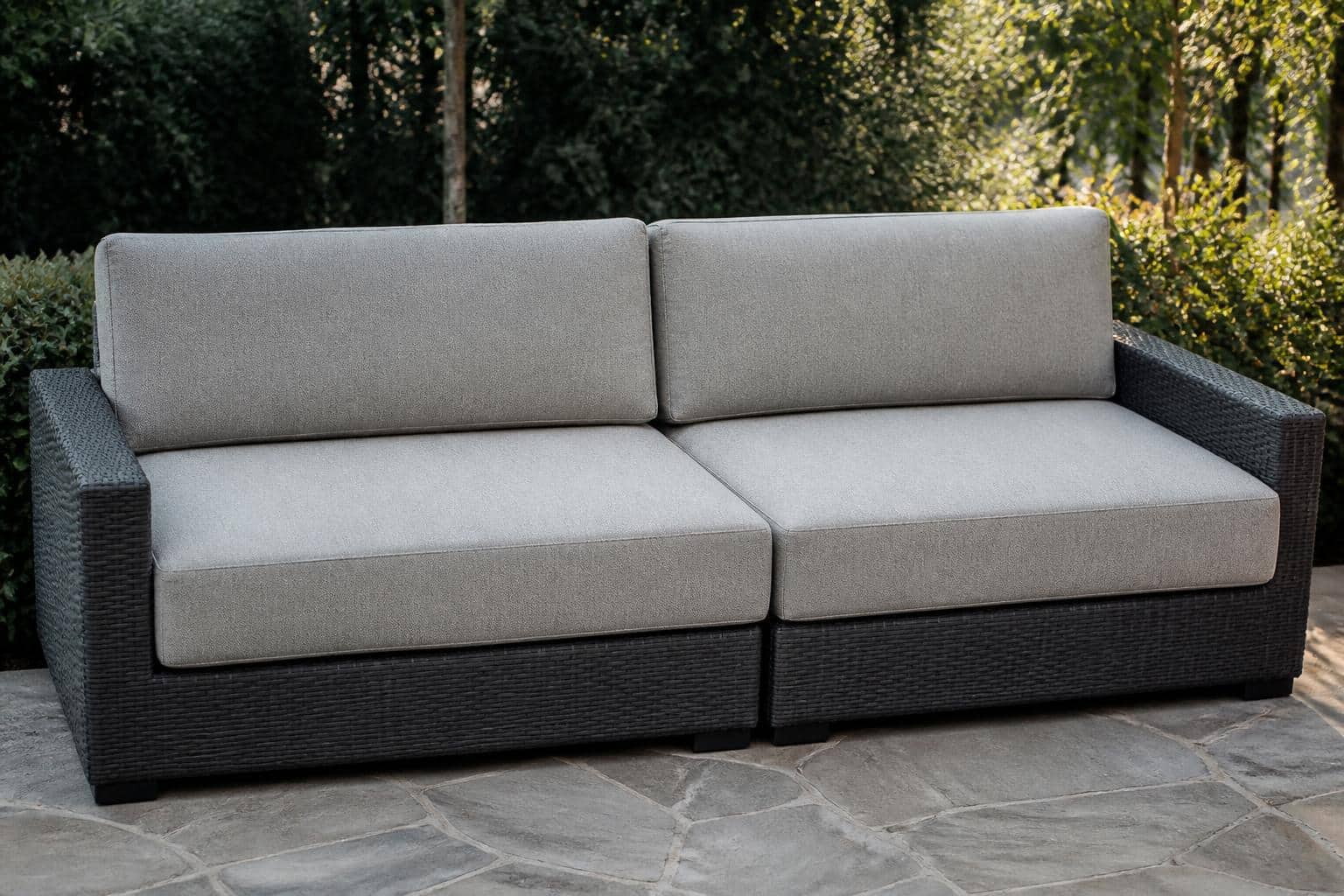

After the frames are joined, replace the cushions and stand back. A properly assembled sectional shows a straight, continuous line along the front rail, the seat cushions, and the back cushions. If the back cushions tilt away from each other at the top, one frame is leaning back; if they lean toward each other, the frames are pinched at the base. Both signal a connector or leveling issue worth correcting before the set sees regular use.
Pay attention to the welt cords along the cushion edges. On a well-aligned sectional, the welts on adjacent cushions meet at nearly the same height. A visible step between them tells you the frames are at different elevations, either from an uneven surface or from feet that were shipped with different heights due to a manufacturing variance. Adjustable glides on the underside of most premium frames can correct small differences.
Rearranging Without Damaging the Hardware
One of the joys of modular seating is reconfiguring it for different occasions: an L-shape for everyday lounging, a U-shape for movie nights, separate loveseats flanking a fire pit for cooler evenings. Every reconfiguration cycles the connectors. To keep them working:
- Release the connector fully before lifting or sliding a piece. Dragging a locked frame stresses the bracket and can bend the pin.
- Lift, don’t drag. Two people per piece is safer for both the hardware and the patio surface.
- Wipe the connector faces with a dry cloth when they’re exposed. Grit inside a cam mechanism accelerates wear.
- Store loose connectors in a labeled bag in a garage or storage bench if a piece is being moved off the patio for a season.
If a connector stops engaging smoothly, the fix is usually simple: check for a bent tab, verify that both frames are level, and confirm nothing is wedged between them. Consult the manufacturer instructions or ask the seller whether model-specific replacement hardware is available rather than forcing a damaged part back into service.
Frequently Asked Questions about Outdoor Sectional Connector Clips
Are connector clips included with every modular sectional?
Most quality modular collections include the connectors needed for the configuration as ordered. If you plan to rearrange the set into layouts the manufacturer didn’t anticipate, ask before purchase whether additional connectors are available and how they’re ordered.
Can outdoor sectional connector clips be replaced if they wear out?
Replacement availability varies by brand, collection, and model year. Save the original assembly paperwork and model number, then ask the manufacturer or seller whether the exact hardware is still available.
Do connectors work between different brands or collections?
Generally no. Frame dimensions, rail heights, and bracket geometry differ between manufacturers, and even between collections within a single brand. Mixing modular pieces from different sets rarely produces a clean seam. Stay within one collection when expanding an existing sectional.
What if the patio surface is not perfectly level?
Small variations can be corrected with adjustable glides on the frame feet or with thin shims tucked out of sight. If the frames cannot sit level together, address the supporting surface before assembly rather than asking the connectors to pull misaligned pieces into place.
Bringing It Together in the Showroom
Modular seating rewards a careful walk-through before purchase. Sit at the seams, look underneath, ask how the connectors release, and think about how the set will move when the seasons change. Ask to see how connector hardware works on modular pieces currently available and compare the proposed layout with your patio measurements.
